Ref. GAUGE-02Sheet 02/03
GAUGE-02 Depth
$1,690

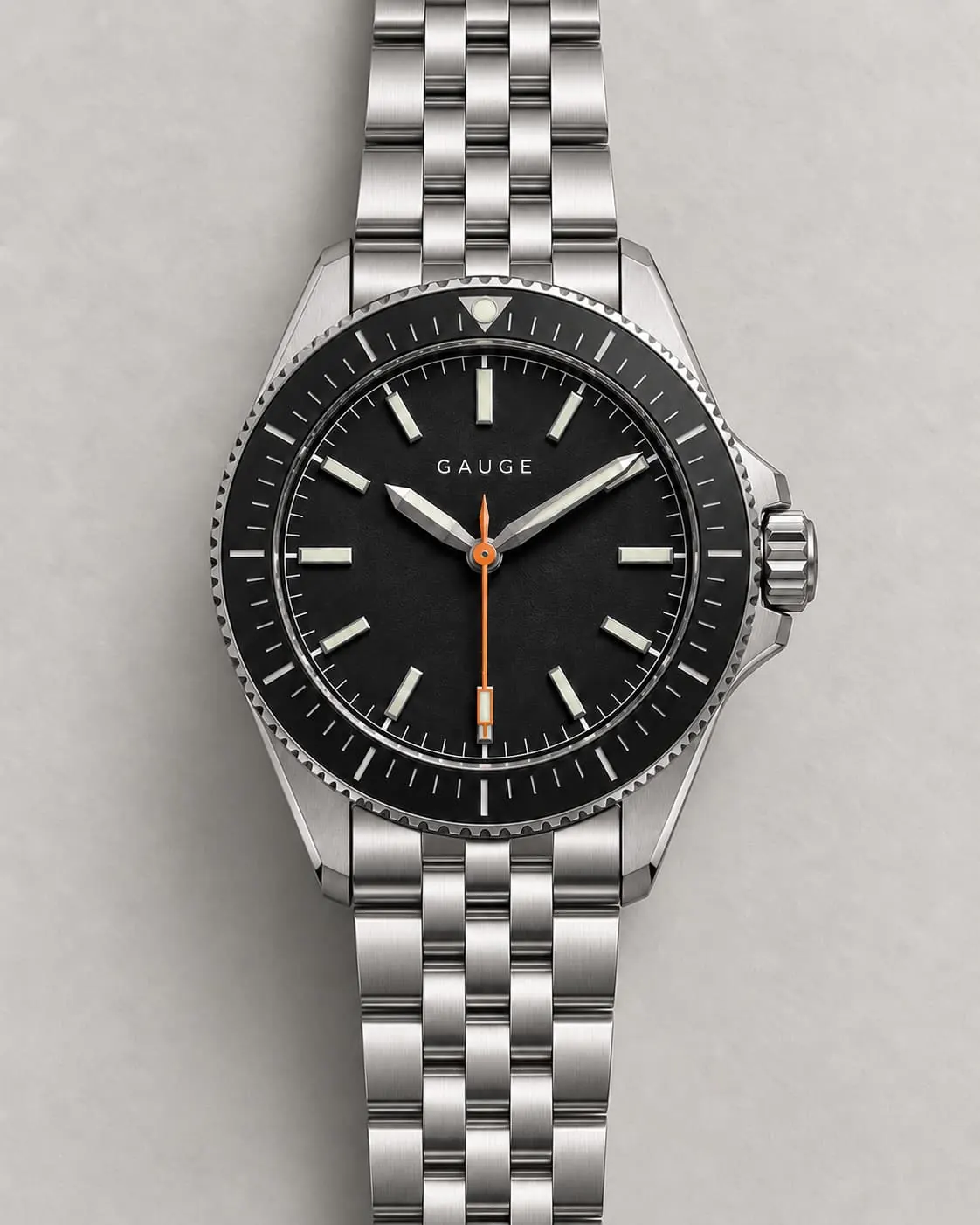

A diver built like a depth gauge. The 120-click bezel is graduated like a dial indicator, the crown screws down, and the seconds hand is the one orange thing on it.
Concept project — nothing is for sale.
- RateRegulated to ±2 s/day in five positions
- RecordSigned calibration record in the box
- ServiceChecked every year, free
SpecificationGAUGE-02
Every figure, to the tenth.
01Case
- Diameter
- Ø 42.0 mm
- Height
- 13.4 mm
- Lug to lug
- 49.5 mm
- Lug width
- 22 mm
- Material
- 316L steel, brushed with polished bevels

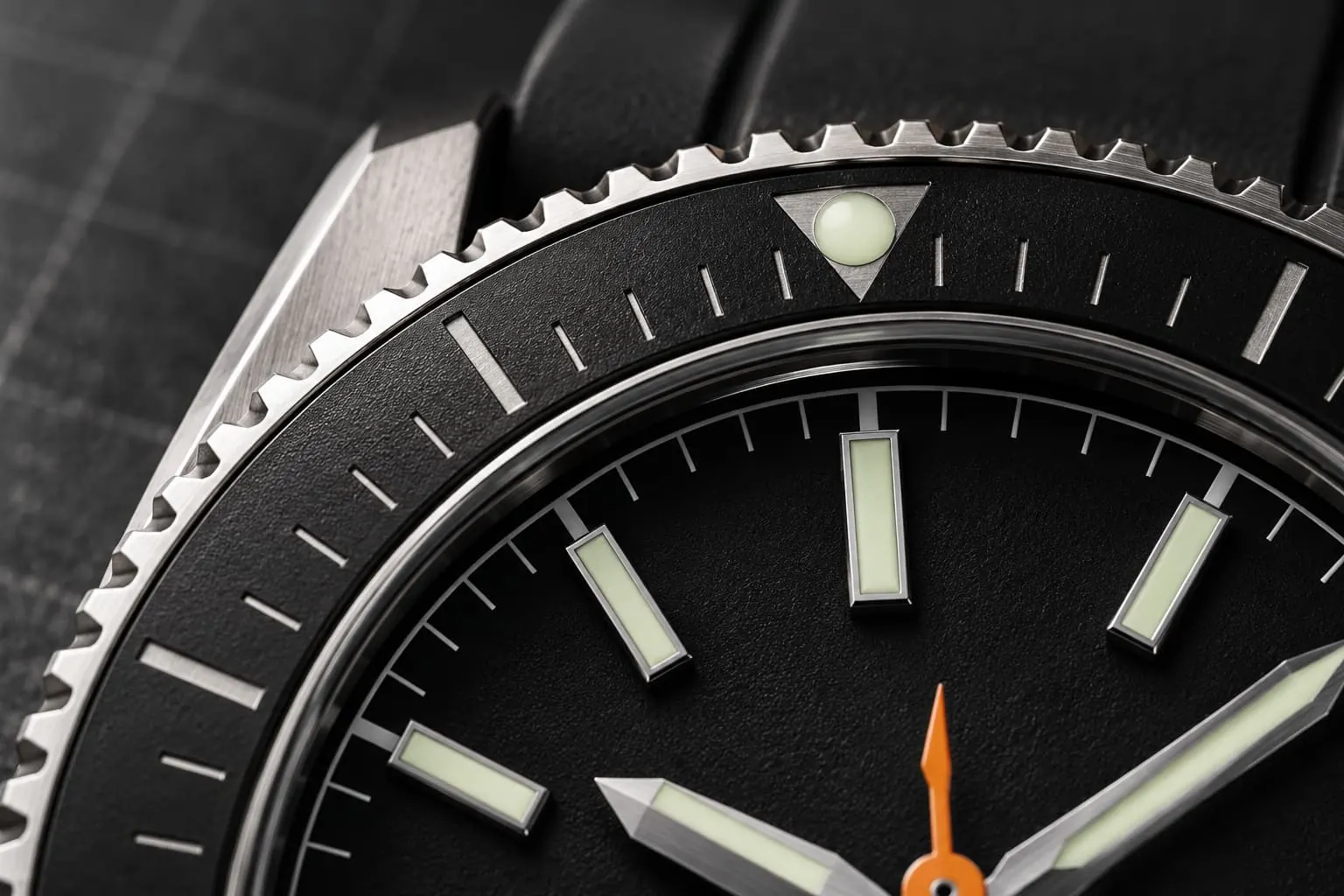

- Bezel
- Unidirectional, 120 clicks, steel insert
- Crystal
- Sapphire, domed, AR inside
- Case back
- Steel, screw-down, serial engraved

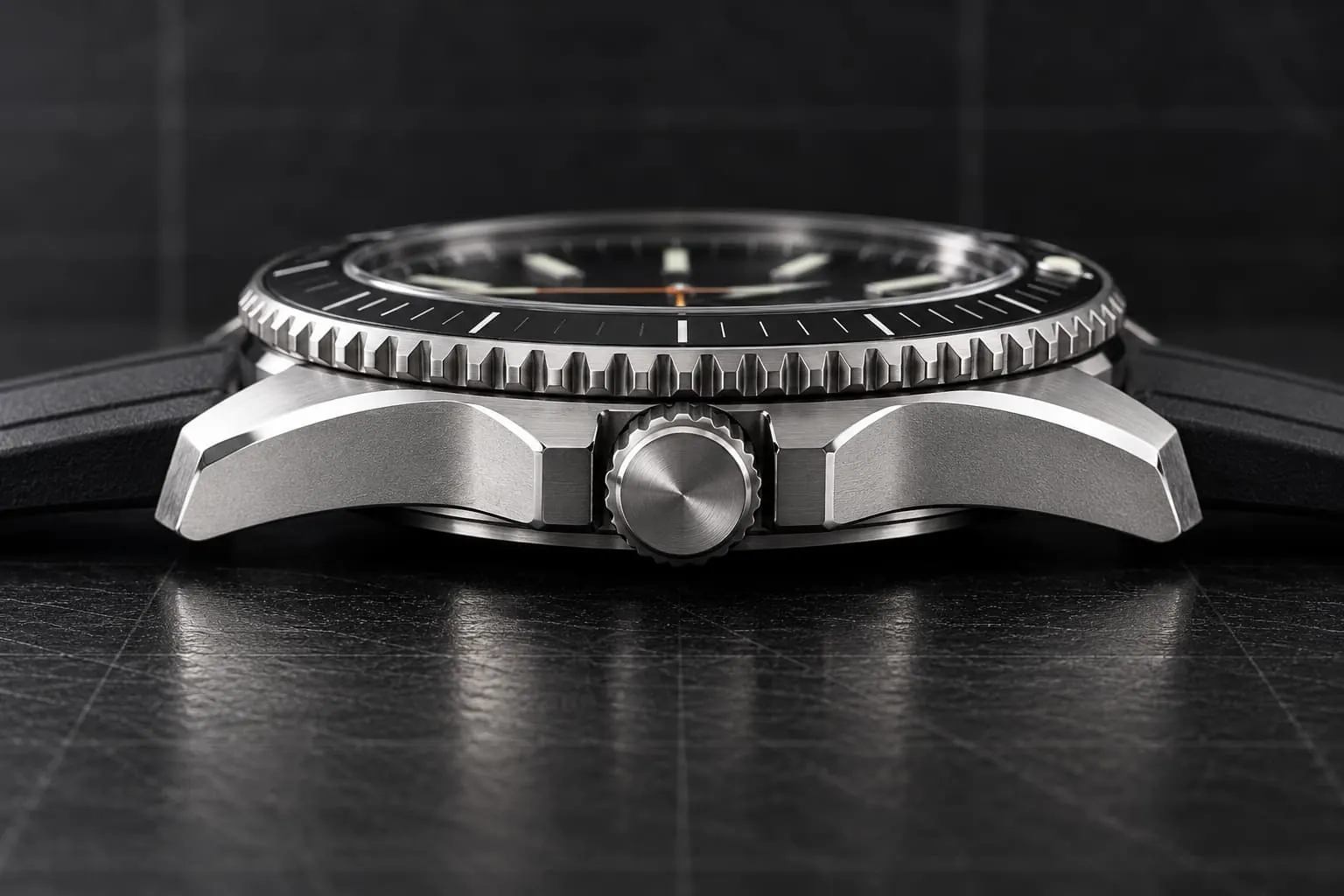

- Crown
- Screw-down, guarded
- Water res.
- 300 m
02Movement
- Calibre
- GAUGE G-21
- Winding
- Automatic
- Frequency
- 28,800 vph (4 Hz)
- Jewels
- 25
- Power reserve
- 42 h
- Functions
- Hours, minutes, central seconds; hacking
03Dial and hands
- Dial
- Matte black, depth-scale chapter ring
- Hands
- Faceted sword, lume-filled, signal-orange seconds
- Lume
- Super-LumiNova BGW9
04Strap

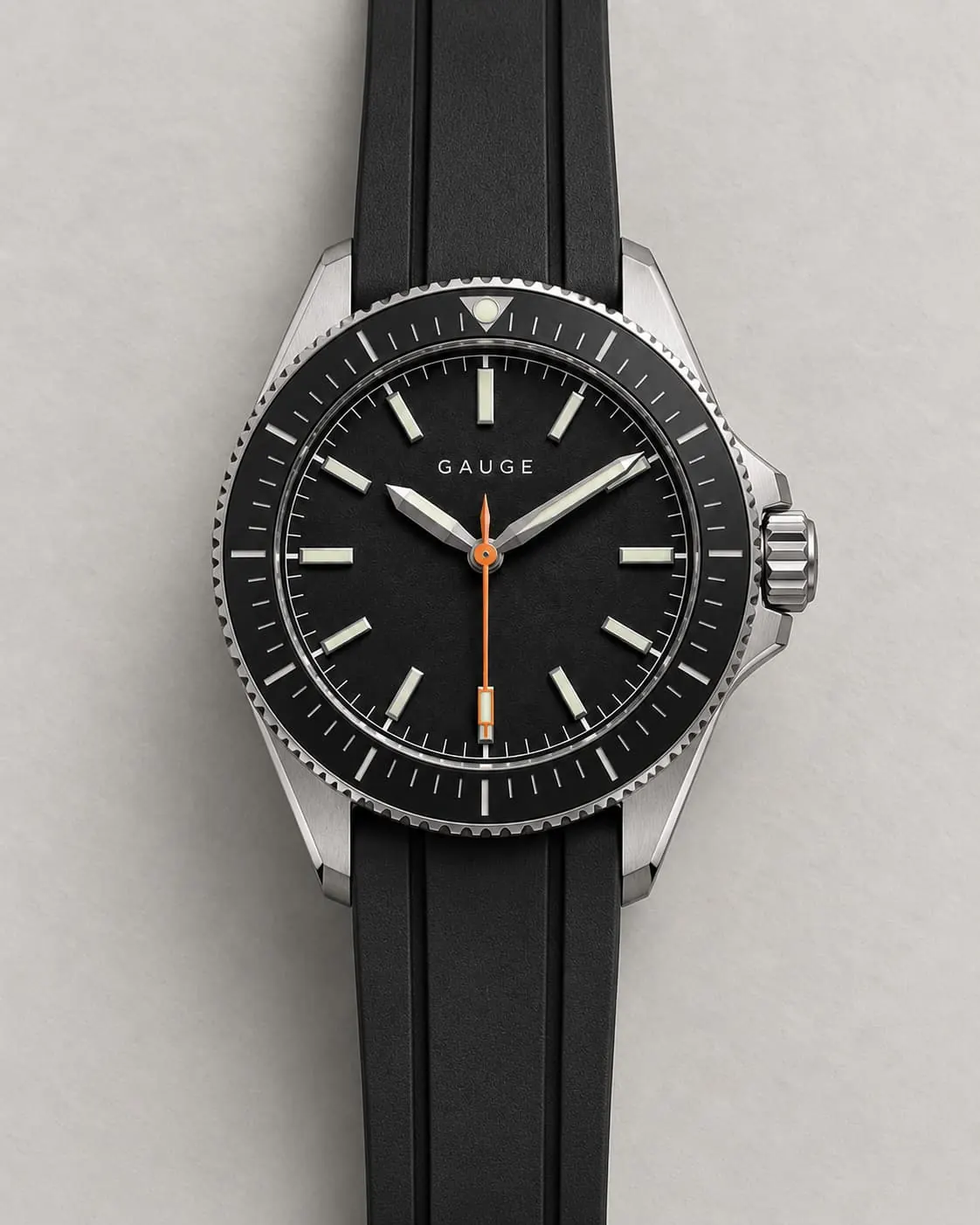

- Strap
- Black rubber, 22 mm
- Buckle
- Steel pin buckle
05Regulation
- Rate
- ±2 s/day
- Positions
- 5 × 24 h
- Record
- Signed, in the box
- Rate check
- Every year, free
- Full service
- Every 5 years
- Warranty
- 5 years
- Maker
- GAUGE
- Title
- GAUGE-02 Depth
- Strap
- Black rubber
- Tolerance
- ±2 s/day
- Sheet
- 02/03
- Rev.
- 2026-10
